SATAMINIJET® 4400 B HVLP NOZZLE SET, STANDARD

SATA
Description

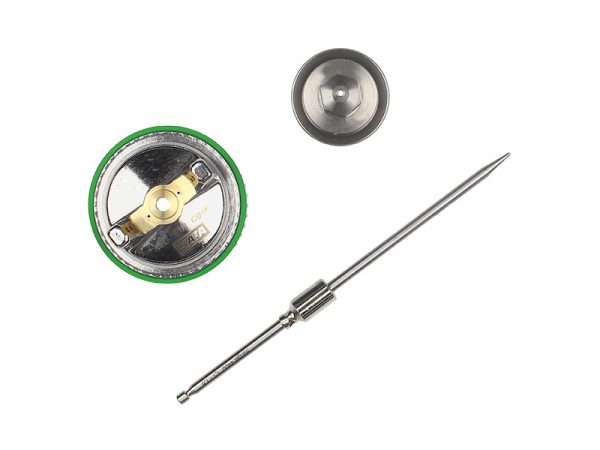

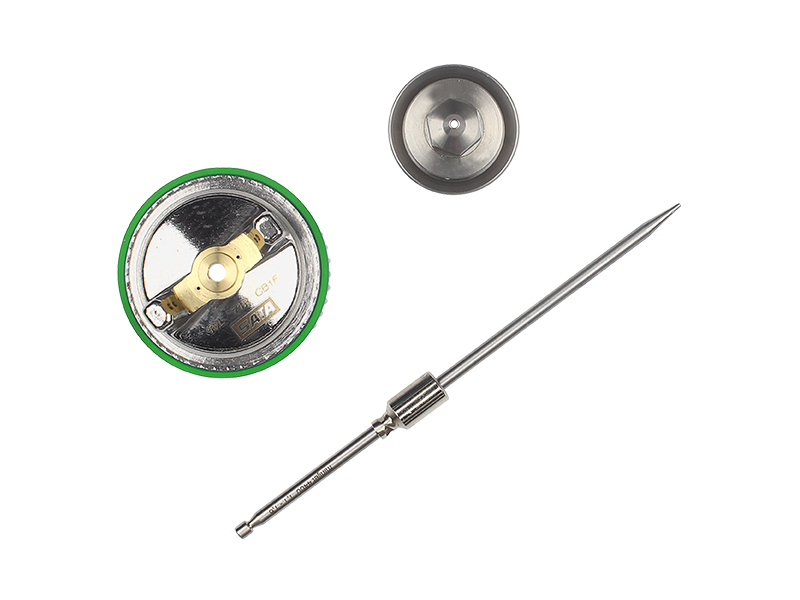

The SATAminijet® 4400 nozzle set is a replacement nozzle set suited for the 4400 B standard range of SATA spray guns.

The concept of a nozzle system is easy to understand: Both proven application technologies – HVLP and RP – remain available, but now each of them with the additional choice between “I” and “O”-nozzle sets.

In line with the increasing nozzle sizes within each of the respective technology (HVLP / RP), the material flow rate increases too with constant increments – which means that the spray fan size and width remain unchanged across the entire nozzle spectrum.

In essence, end-users can now rely on a transparent and consistent system which offers them clear and well-structured application options.

Choosing an “I” or “O” a nozzle set

The “I”-nozzles produce a parallel spray fan pattern with a minimal dry zone and a drier centre which is ideal for painters preferring a reduced application speed and maximum application control during the painting process.

The film build per coat in comparison to an “O”-nozzle of the same size is slightly reduced.

  • Parallel spray fan with minimal dry zone
  • Improved control during application
  • Reduced film builds per coat compared to the nozzle set currently in use or the “O”-nozzle.

“O”-nozzles have an oval-shaped spray fan pattern with a larger dry zone and a wet core to accommodate increased application speed at the expense of slightly less application control during the painting process. The film build per coat in comparison to an “I”-nozzle is slightly higher.

  • Oval-shaped spray fan with a larger dry zone
  • Wet core for increased application speed
  • Film builds per coat slightly higher compared to the “I”-nozzle.
Part No. Description Min Qty
201194 SATAminijet® 4400 B HVLP Nozzle set, Standard, 0.3 Nozzle 1
201202 SATAminijet® 4400 B HVLP Nozzle set, Standard, 0.5 Nozzle 1
201210 SATAminijet® 4400 B HVLP Nozzle set, Standard, 0.8 Nozzle 1
201228 SATAminijet® 4400 B HVLP Nozzle set, Standard, 1.0 Nozzle 1
201236 SATAminijet® 4400 B HVLP Nozzle set, Standard, 1.1 Nozzle 1
