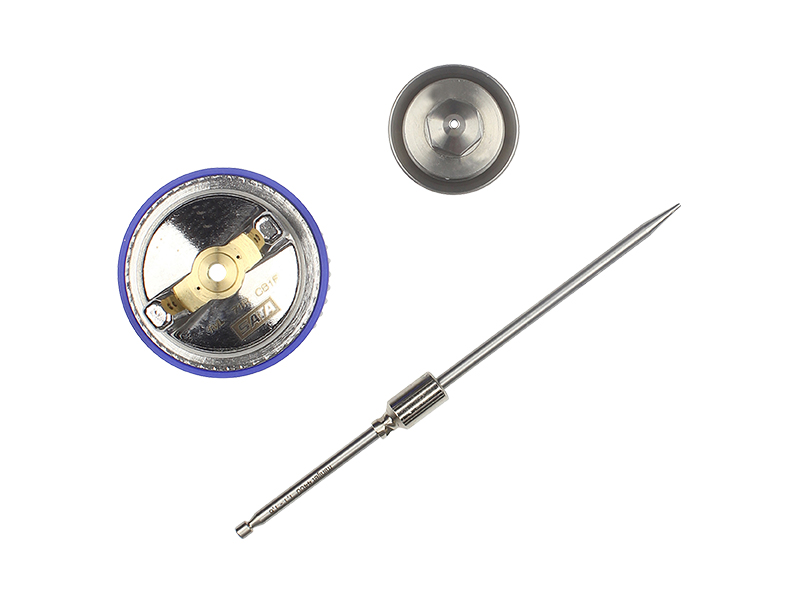

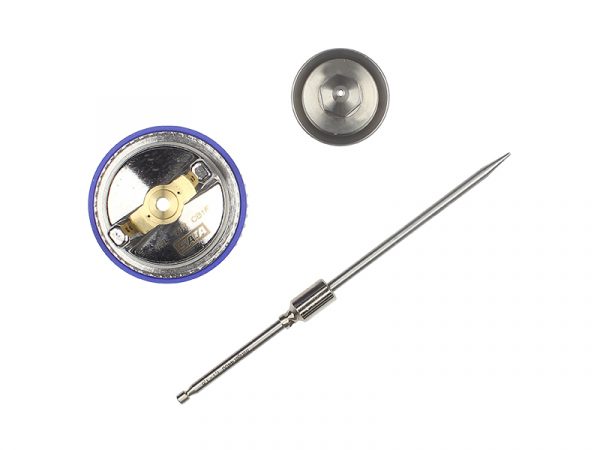

SATAMINIJET® 4400 B RP NOZZLE SET, STANDARD

SATA
Description

The SATAminijet® 4400 B is the perfect compact spray gun if you are looking for superb finishes in difficult-to-access areas.

The special SR nozzles are perfectly suitable for spot repairs on vehicles. This spray gun allows the application of all modern paint systems – including waterborne paints.

This spray gun is perfectly balanced with its new ergonomically shaped handle. All adjustment elements can be safely operated even when wearing gloves. Furthermore, the design of the round/flat spray control is geared to the SATAminijet® 3000 B. The spray gun is sturdy and long-lasting and the spray fan can be exactly adjusted with only a 3/4 turn.

The spray gun body is equipped with a corrosion-resistant chrome surface. The sturdy air cap is made of chrome-plated brass and the paint needle and fluid tip are made of tempered stainless steel. The trigger protects the paint needle from overspray during painting, thus prolonging the lifetime of the paint needle sealing. The air piston rod has been especially reinforced. All these features result in an extended spray gun lifetime.

The SATAminijet® 4400 B allows the use of all three RPS cup sizes with no adapter necessary. Furthermore, the large connection makes the cleaning of the material passages extremely safe and easy.

SATAminijet® 4400 B RP NOZZLE SET, STANDARD

Part No. Description Min Qty
202408 SATAminijet® 4400 B RP Nozzle set, Standard, 0.5 Nozzle 1
201319 SATAminijet® 4400 B RP Nozzle set, Standard, 1.4 Nozzle 1
201327 SATAminijet® 4400 B RP Nozzle set, Standard, 1.6 Nozzle 1

TECHNICAL SPECIFICATIONS
Air consumption 120,0 Nl/min
Max. inlet air pressure 10,0 bar
Packaging unit 1,0 Pieces
Net weight 0,051 – 1,323 kg
Recommended dynamic inlet pressure 2,0 bar
Recommended spraying distance 12 – 15 cm
Cup connection type QCC
Nozzle Size 0,3 / 0,5 / 0,8 / 1,0 / 1,1 / 0,8 SR / 1,0 SR / 1,2 SR / 1,4 SR
Nozzle Technology HVLP

TECHNICAL SPECIFICATIONS
Air consumption 200,0 Nl/min
Max. inlet air pressure 10,0 bar
Packaging unit 1,0 Pieces
Net weight 0,051 – 0,884 kg
Recommended dynamic inlet pressure 2,0 bar
Recommended spraying distance 12 – 19 cm
Cup connection type QCC
Nozzle Size 0,5 / 1,4 / 1,6 / 0,8 SR / 1,0 SR / 1,2 SR / 1,3 / 0,3 SR / 1,3 SR
Nozzle Technology RP
